XF 27mm error

Recommended Posts

Hi!



I recently bought the X-H1 and my first lens was supposed to be the 27mm. I happened to get the 18-55mm lens very cheaply at the time of the camera purchase and received my 27mm just couple of days ago.



I could take some shots with the XF27mm, but within a day I started receiving error message Turn Camera OFF and turn ON again. First I thought it was b/c the X-H1 was new and had some bug. Then I realized that the problem was with the lens. The lens might focus some time, and just suddenly it stucks and the camera gives the error message. It seems as if the lens cannot move the front element like it should. It might stay "out" when I turn the camera off and another time it works and "retracts" when turning the camera on or off.



So, faulty lens and sadly I found out browsing around that there are similar experiences with this particular lens model. My question is, is the lens very sensitive to break. I mean, should I try to get it repaired or just give up and end buying some other lens model? I did browse through Flickr and found out that the IQ and rendering of this lens is something I would like to have, so it would be sad to not keep it and repair it. But I hate to doubt the reliability of my gear. Any similar experiences or experiences of how durable the lens is when it is a good sample?



-Veijo-

Share this post


Link to post
Share on other sites

Mine was on my X-T1 on a tripod last winter when the whole thing fell over and hit the snow covered ground front-faced from approx. 1.5 meters. Lens is still working fine.



I'd say get a replacement.

Share this post


Link to post
Share on other sites
I've gotten this message on my X-T10 and 27mm lens when using a (too tightly screwed) lens hood. Do you happen to use any accessories that use the filter thread?

Share this post


Link to post
Share on other sites

Thank you for the responses.



No, I do not use filters and I haven't even touched the front element area except using the lens front cap.



The problem is in the lens itself. It seems the gearing goes kind of off rail at some point of focusing and then the focusing stops working and the camera gives the error. It works some time possibly and then again, suddenly, during focusing it stops working. I replicated the problem quite succesfully By pointing the lens upwards when focusing. It almost every time locks up there. But even when shooting horizontally this happens. And even if it won't totally lock up, it kinda freezes to wrong focus setting and needs some focusing tries to "wake up".



I contacted Fuji England's repair service and the person answering didn't recognize this problem to be a common problem. They suggested to send it for repair.



I have contacted the seller and probably send it to the seller so that they can send it to repair (or replace the lens, whatever they choose).



So, I end up still trying with the lens whenever I get it back working. Luckily it wasn't my only lens covering that focal lenght :-)

Share this post


Link to post
Share on other sites

Thanks for sharing your experience. XF 27mm F2.8 is quite fragile lens, it can serve great for many years but it can also suddenly fail like it happened with you and numerous other people.

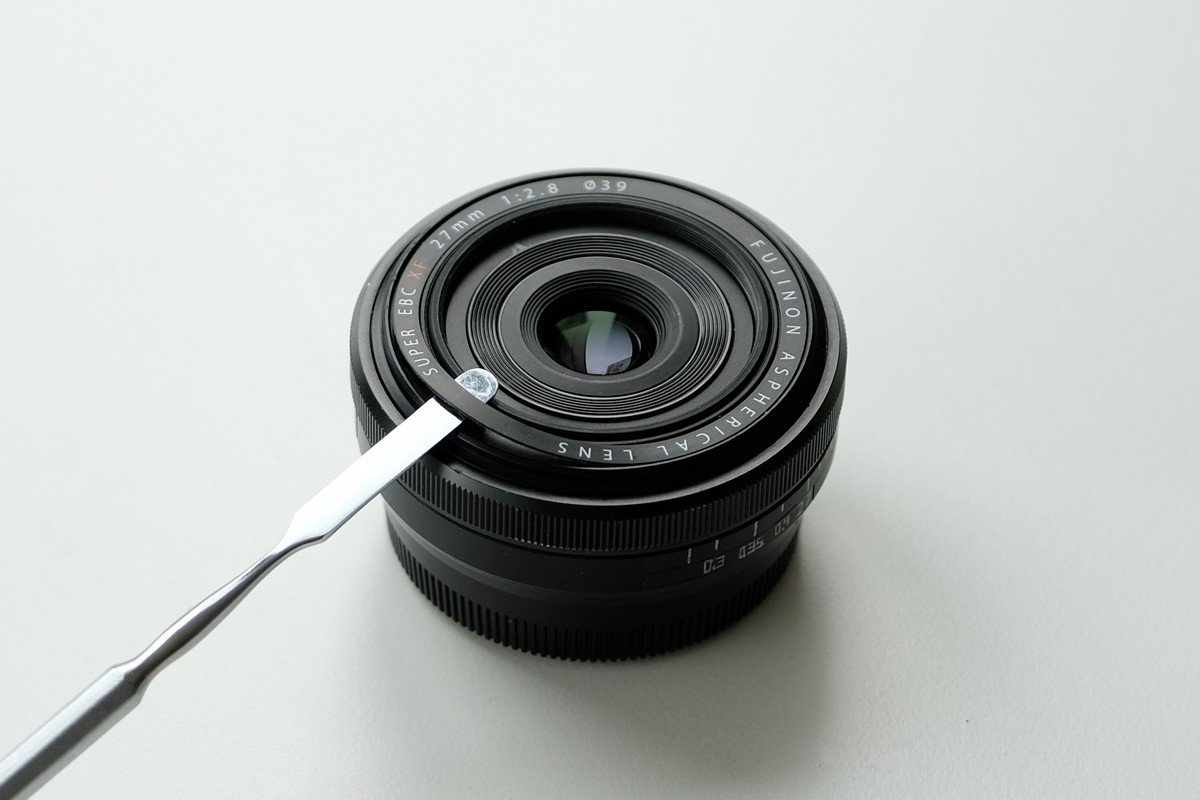

I've disassembled this lens few times. It's nicely built, but that moving core is often causing problems.

Here's related article with exposed Fujinon 27mm F1.8 gears, maybe your lens had some of the gear teeth cracked.

Edited by yukosteel

Share this post


Link to post
Share on other sites

Sorry for the late reply. I got it repaired by the seller without costs for me. Worked well after the repair, though I do not know what was repaired. It was the same lens by it's serial number so the seller didn't just swap it to a new one.

After some consideration I ended up selling the lens and buy a 23mm lens instead. Got at a very good price a used XF23mm F1.4 and I am not much giving thought for the 27mm anymore.

Share this post


Link to post
Share on other sites

Sadly, I'm now encountering the same problem described by the original poster with my 27/2.8.

I've used this lens without a problem for 3.5 years on an X-M1 body - although not my first-choice prime, Lightroom tells me I've taken around 2000 images with it. Recently I picked up a secondhand X-T1; happily took around 150 pics with the 27/2.8 over a few weeks, but on one of first occasions I took a photo close to the lens's MFD, the front/central element extended to its full extent and couldn't be recessed back into the lens body when I powered down the camera. Got the same "turn camera OFF and ON" message. Now the lens malfunctions in the same way whenever I take a near-macro shot, on either X-M1 or X-T1 body. Focusing several metres away: no problem. But a close-range shot extends that element and the motor can't pull it back in at power-off.

The only way I can continue to use the 27/2.8 is to physically force the central element back into the body of the lens, while the camera is off, and the lens cap on, applying even pressure on the front of the cap. I'm sure if I continue to mis-treat the gears in this way it will eventually fail entirely. (Occasionally I can avoid the error by making sure the last photo I take before switching off the camera is focused at near-infinity but even that doesn't always work). Odd that the lens appears be able to switch between macro and infinity focusing without an issue during continuous use, but as soon as you switch the camera off, it can't pull that element back in - hence the error.

I guess it's just a coincidence that this failure happened on the X-T1 body (after three years of trouble-free use on the X-M1), unless there's something particular to that body/lens combination. I'll try a firmware upgrade (it's v1.00, and v1.11 is available) and cleaning the contacts, but it may be a fatal error for this lens.
